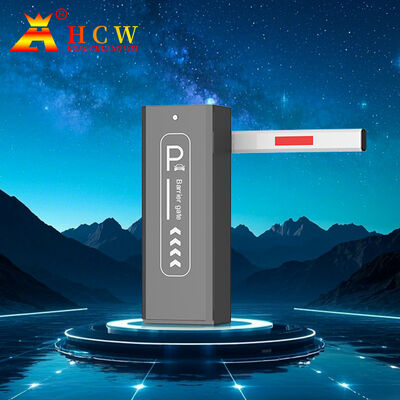

HCW Parking Barrier Gate with 150W Motor Power for Fast Lifting Speed and Stable Barrier Movement
| Place of Origin | China |
|---|---|
| ชื่อแบรนด์ | HCW |
| ได้รับการรับรอง | CE |
| Model Number | CW219 |
| Minimum Order Quantity | 2 piece |
| ราคา | โปร่ง |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| Model | CW219 | Power supply | AC220V±10%，50Hz |
|---|---|---|---|
| Working temperature | -35℃~+70℃ | Application | Roadway Safety |
| Size | 340*245*970mm | Motor | DC brush-less |
| Motor power | 150W | Length | 6m |
| เน้น | 150W Motor Power Parking Barrier Gate,Fast Lifting Speed Boom Barrier Gate,Stable Barrier Movement Automatic Barrier Gate |
||
รายละเอียดสินค้า
HCW Parking Barrier Gate with Digital Control and Remote Operation
Barrier Gate RFID Security Smart Wireless Remote Control Expandable For Parking Lot Use

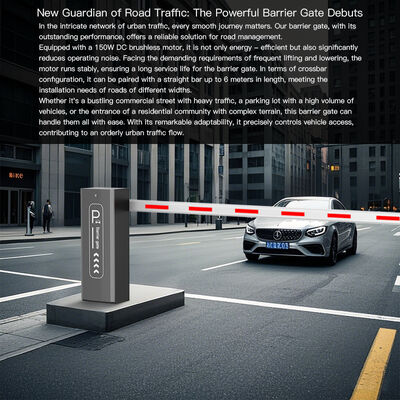

The CW219 is our sixth-generation DC brushless electric barrier gate, designed for fast lifting speed and stable operation. This advanced system features digital control technology for intelligent barrier management and supports wireless remote control operation.
Product Features
- Digital control technology monitors the entire operation process
- Wireless remote control for gate operation (lift, drop, stop)
- Manual button operation available
- Supports brand OEM processing
- Exported to international markets
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | CW219 |
| Motor | DC brushless |
| Power Supply | DC24V 150w |
| Material | Cold Rolled Steel |
| Surface Treatment | Galvanized + Powder Coated |
| Thickness | 1.5mm |

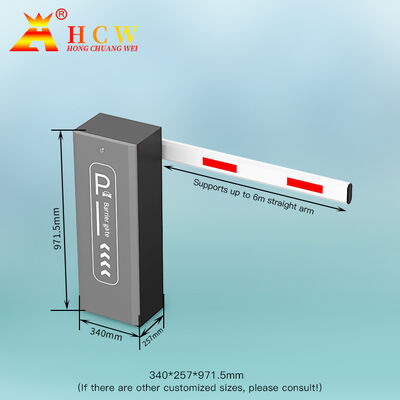

| Size | 340*245*971.5mm |
| Working Environment | -40℃~+80℃ |

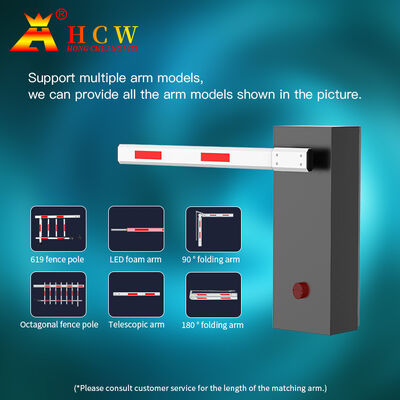

| Available Poles | Straight arm, folding arm, fence boom, Foam rod |
| Support Length | Straight arm≤6m, fence boom≤4.5m |
| Foldable Rod Types | 90° and 180° |
| Lift/Drop Time | 1~6s (Adjustable) |
| Noise Level | <50db |
| Protection Features | Motor overcurrent, overload, short circuit protection, motor failure protection, power reverse connection protection |
Key Advantages
- Wireless remote control operation (rise, drop, stop)
- Operates reliably in extreme temperatures (-40℃ to +80℃)

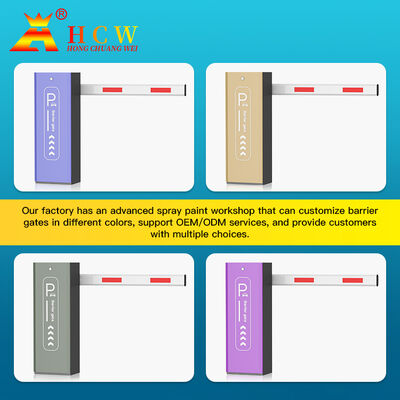

- Customizable colors and sizes available
- Anti-collision function protects the pole from damage
- Four pole options: Straight, fence, telescopic, and 90° folding

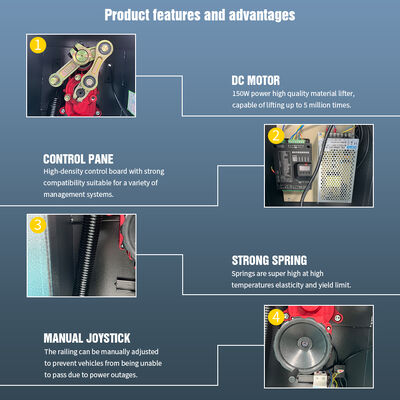

Equipment Functions
- High-quality material lifter with 5 million cycle capability
- High-temperature resistant springs with superior elasticity

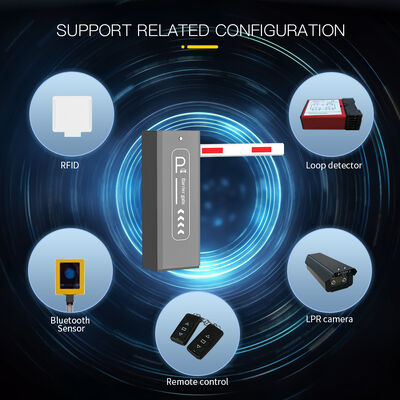

- High-density control board compatible with various management systems
- Adjustable operating speed (1.5s to 6s) based on boom length
- Manual adjustment capability for power outage situations
