HCW Robust Parking Barrier Gate with 1-6 Meters Arm Length and 3-6S Adjustable Speed for Extreme Conditions
| Place of Origin | China |
|---|---|
| ชื่อแบรนด์ | HCW |
| ได้รับการรับรอง | CE |
| Model Number | CW203 |
| Minimum Order Quantity | 2 piece |
| ราคา | โปร่ง |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
ติดต่อฉันสำหรับตัวอย่างฟรีและคูปอง
Whatsapp:0086 18588475571
วีแชท: 0086 18588475571
Skype: sales10@aixton.com
หากคุณมีข้อกังวลใด ๆ เราให้ความช่วยเหลือออนไลน์ตลอด 24 ชั่วโมง
xรายละเอียดสินค้า
| Brand name | HCW | Product model | CW203 |
|---|---|---|---|
| Chassis material | Cold rolled plate | Arm length | 1-6 meters |
| Arm material | Aluminum/foam | Motor type | DC Brushless Motor |
| Speed | 3-6S adjustable | Product size | 340*280*1045mm |
| Safety & Control Features | Anti-Collision Rebound /Loop Detector /Infrared | Arm type | Straight/Folding/Fence/LED Foam/Telescopic arms |
| เน้น | Robust Parking Barrier Gate,1-6 Meters Arm Length Boom Barrier,3-6S Adjustable Speed Automatic Barrier Gate |
||
รายละเอียดสินค้า
HCW Robust Parking Barrier Gate Suitable for Extreme Weather and High Humidity Environments
Product Introduction
The CW203 barrier gate is a durable boom barrier designed for efficient traffic control. Operating on AC220V±10% (50Hz), it withstands -25℃ to 70℃ and 5%-95% humidity, ensuring reliability in harsh conditions. Its bidirectional design allows flexible installation.
Equipped with a brushless DC motor (80W/120W), this boom barrier offers fast 3-second or steady 6-second lifting cycles. It supports multiple arm types for versatile applications. The barrier gate features anti-crush protection, reversing instantly upon resistance to prevent accidents. Compact yet powerful, the CW203 boom barrier is ideal for parking, tolls, and secure zones.
Technical Specifications
| Brand name | HCW |
|---|---|
| Product model | CW 203 |
| Chassis material | Cold rolled plate |
| Arm length | 1-6 meters |
| Arm material | Aluminum/foam |
| Motor type | DC Brushless Motor |
| Speed | 3-6S adjustable |

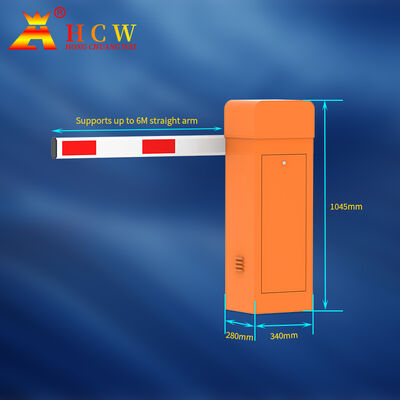

| Product size | 340*280*1045mm |
| Warranty | 1 Year |
| Humidity | 5% - 95% |
| Safety & Control Features | Anti-Collision Rebound /Loop Detector /Infrared |

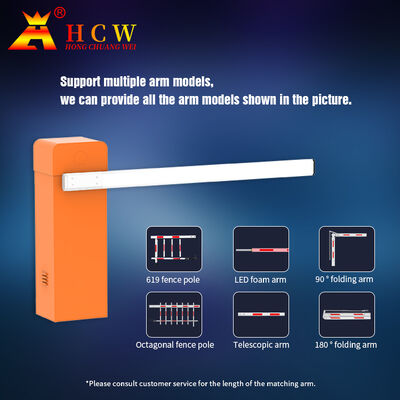

| Arm type | Straight/Folding/Fence/LED Foam/Telescopic arms |
Key Advantages
- Smart & Simplified Operation: Supports intelligent management via wireless remote control (lift, lower, stop) or manual buttons, enabling effortless user interaction and seamless integration into modern access systems.

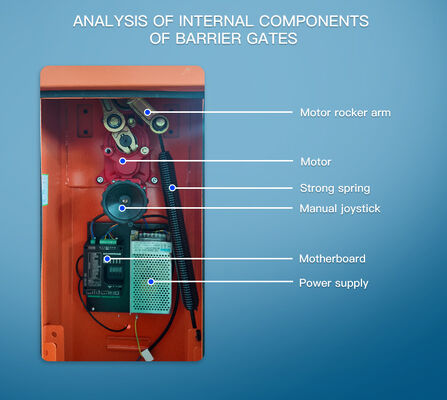

- Patented Integrated Core Mechanism: One-piece design combines the frame, reducer, and transmission system, minimizing vibration and enhancing operational precision for stable, reliable performance.
- Adaptable & Secure Arm Adjustment: Tension spring system safely adapts to varying arm lengths, delivering high safety, flexibility, and user-centric customization.
- Durable & Aesthetic Housing: Electrostatic high-temperature powder coating (180°C-250°C) resists corrosion, fading, and peeling while maintaining a sleek appearance.

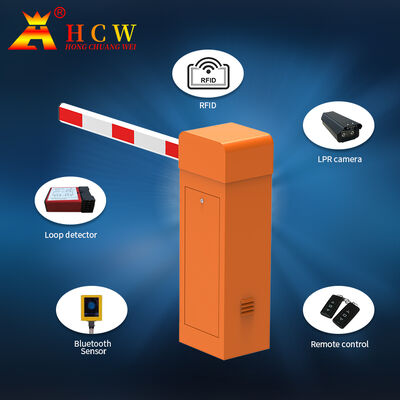

- Multi-Layered Anti-Crash Protection: Supports customizable safety systems including ground loops, pressure sensors, and infrared detectors for 360° protection.
